Sunday, August 30, 2015

Yong APC from ROKA

The Republic of Korea Army (ROKA) has been running a program for a new 8 x 8 wheeled APC in the past years. It was announced some time ago that Hyundai Rotem's design was considered the winner.

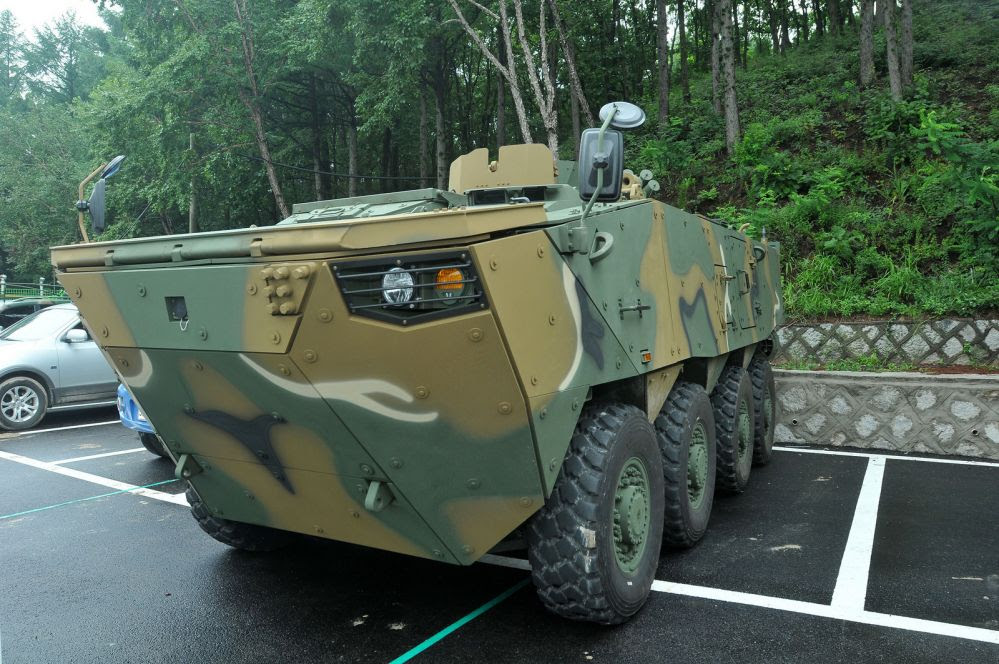

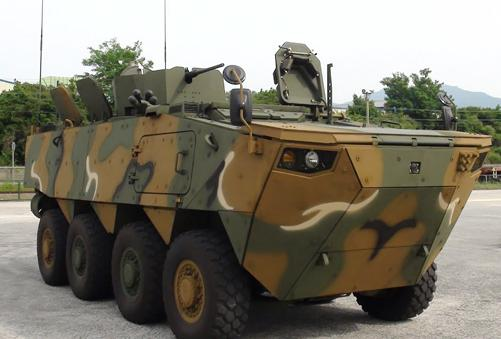

The 8 x 8 wheeled vehicle from Hyundai Rotem in ROKA camouflage
Defence-Blog.com has posted a number of photographs of the new "Yong" APC from Hyundai Rotem, which will enter service with the ROKA. At least 600 vehicles are expected to enter service until 2020.
Four hatches at the crew compartment allow the dismounts to participate in combat.
The main armament of the photographed Yong consists of a single 12.7 mm M2 heavy machine gun, which is manually operated. The gunner is protected by a gun shield made of steel. This is quite a surprise, considering how many countries have moved to remote weapon stations.
It is safe to assume that a number of different weapons can be mounted on the Yong. Most likely there will also be an option for a 40 mm automatic grenade launcher.
The swim engines (pum-jets?) of the Yong are located at the vehicle rear.
Supposedly the Yong can reach a top speed of up to 100-105 kmph. The vehicle is estimated to have  a total operational range of 600 kilometres. Two swim engines, which appear to be pump-jets, make the vehicle amphibious.
The engine of the vehicle provides an output of approximately 420 horsepower.

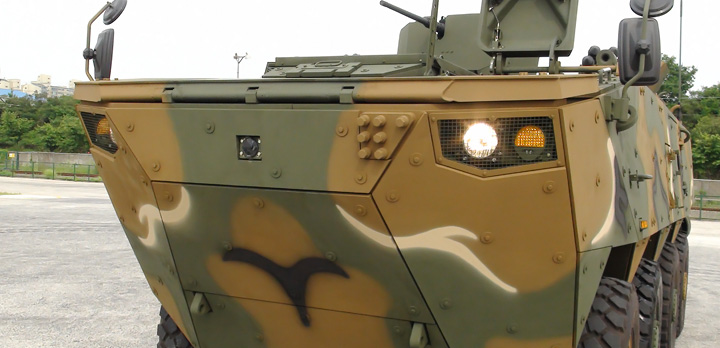

The front of the Yong. Note the armor panels.
The Yong is fitted with applique armor panels, which seem to be composite armor. Probably the vehicle utilizes ceramic composite armor similar to MEXAS or AMAP, which are used on the Stryker ICV, Fuchs 1A8, VAB and Boxer. The low weight required to remain amphibious however means that a relatively low level of protection can be achieved only.
It seems that the frontal arc is most likely protected against heavy machine guns (i.e. 14.5 mm API) at short ranges, but the sides and rear are probably not designed for this level of protection.

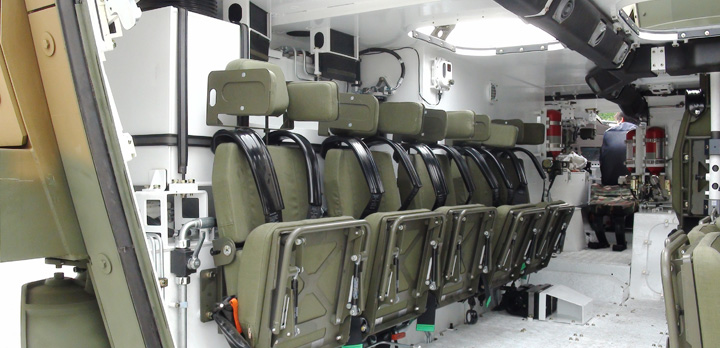

The seats do not appear to be mounted in a mine protected configuration.
First vehicles are expected to enter regular troop service in 2016.
